LIGHTNING PROTECTION SYSTEMS

Bonding Bars

Share this

The equipotential bonding bars are the ideal solution for shunts or multiple connections to different equipment in the installation of a grounding network.

At Proinex we have three models of BEP bars (Equipotential Bar)  that apply for different numbers of connections.

Model S-5

Model L-6

Model L-16

All models are built in a single piece of stainless steel, laser cut and punched, and then folded by CNC.


Installation

To install either of the three equipotential bonding bars models, the mounting holes must be planed and fixed using the most appropriate means to the surface to which they will be attached (wall, metal structure, reinforced concrete, etc.).

Once the equipotential bar is installed, the different elements that make up the grounding network, javelins, metal structures, equipment, etc. can be connected.

Specifications

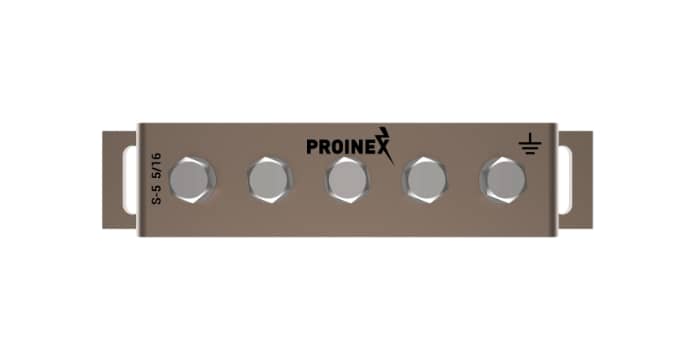

Model S-5

  • Length: 7.9 in (200 mm)
  • Width: 1.6 in (40mm)
  • Height: 2.0 in (50mm)
  • Number of connections: 5
  • Bolts: 5/16" W hex head
  • Mounting: By means of 2 holes

Specifications

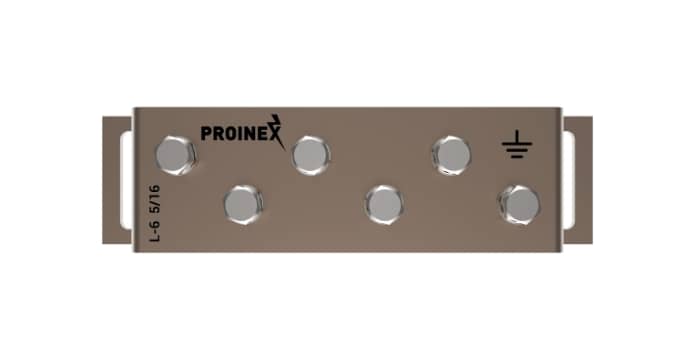

Model L-6

  • Length: 9.1 in (230 mm)
  • Width: 2.4 in (60 mm)
  • Height: 2.0 in (50 mm)
  • Number of connections: 6
  • Bolts: 5/16" W hex head
  • Mounting: By means of 2 holes

Specifications

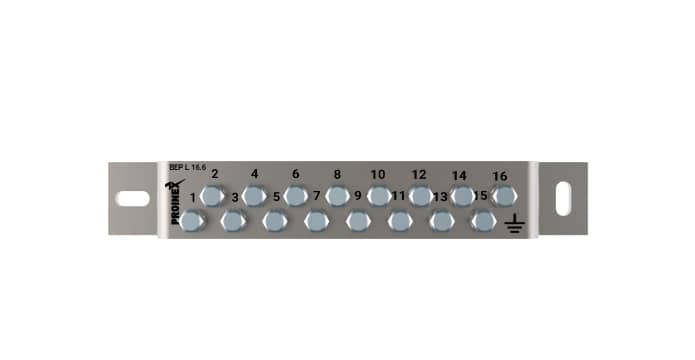

Model L-16

  • Length: 10.2 in (260 mm)
  • Width: 1.5 in (38 mm)
  • Height: 1.2 in (30 mm)
  • Number of connections: 16
  • Bolts: M6 x 10 Stainless Steel
  • Mounting: By means of 2 holes

Are you a lightning protection installer?

Manufacturing, distribution, supply and delivery for installers and associated professionals.

Maintenance

No maintenance required

* Once the equipotential bars are installed and their connections are correctly adjusted, they do not require any maintenance.

Warranty

You are fully protected by our 100% Satisfaction-Warranty.


Proinex Equipotential Bonding Bars are warranty for 10 years.
